Candle LED SMD version with PIC 12F683

* Updated March 2013 *



For documentation and operation, see the project Candle LED.

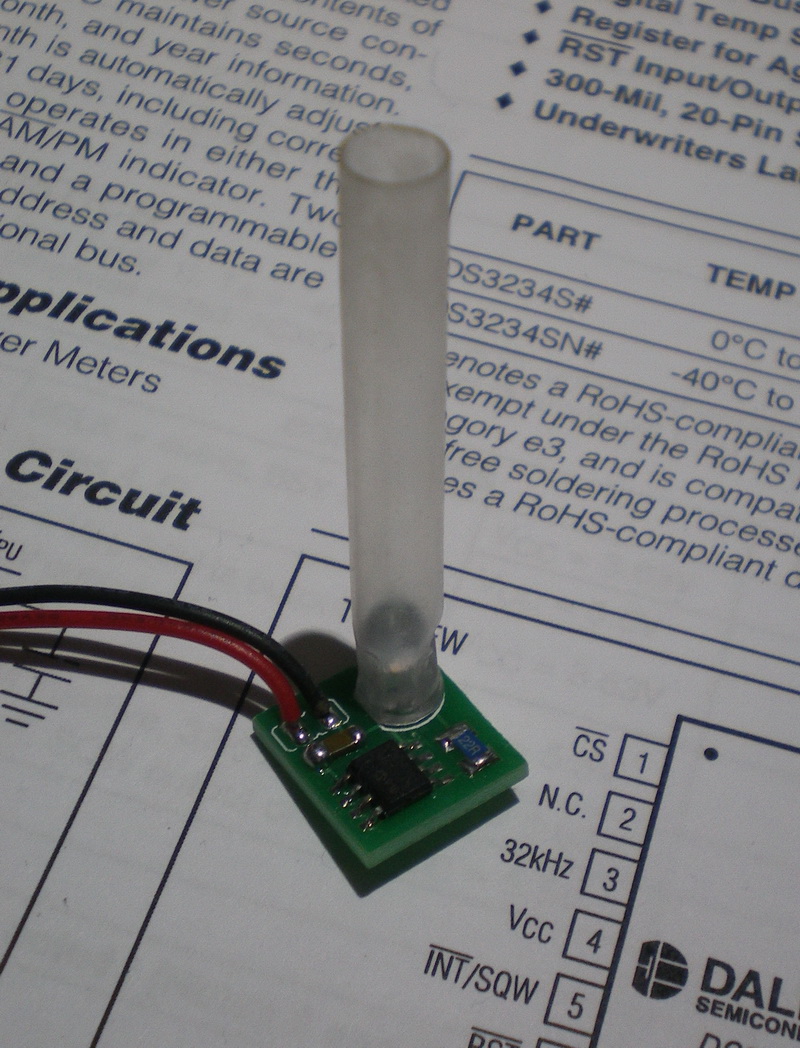

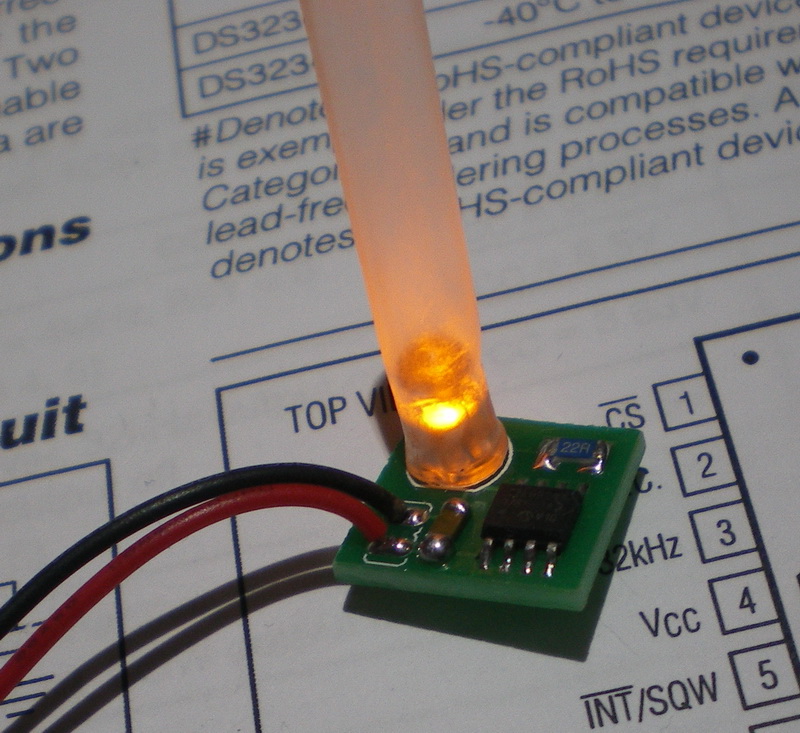

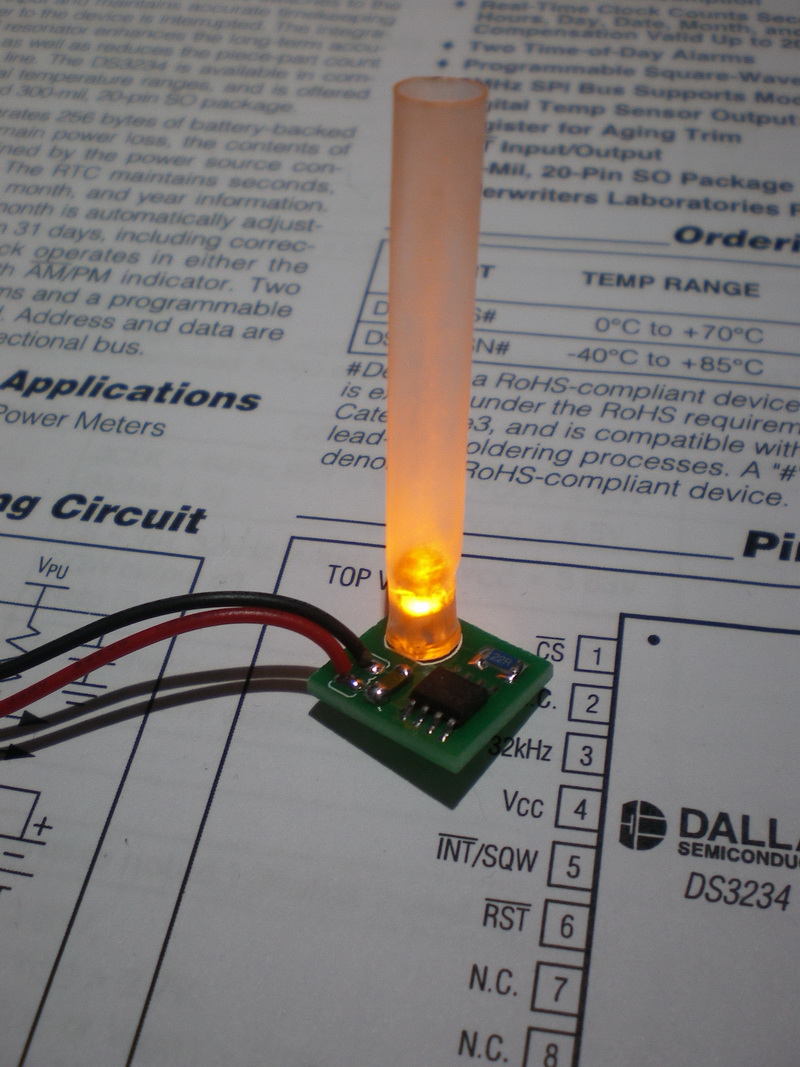

This miniaturized version 13x13mm will soon be available also in assembled and tested.

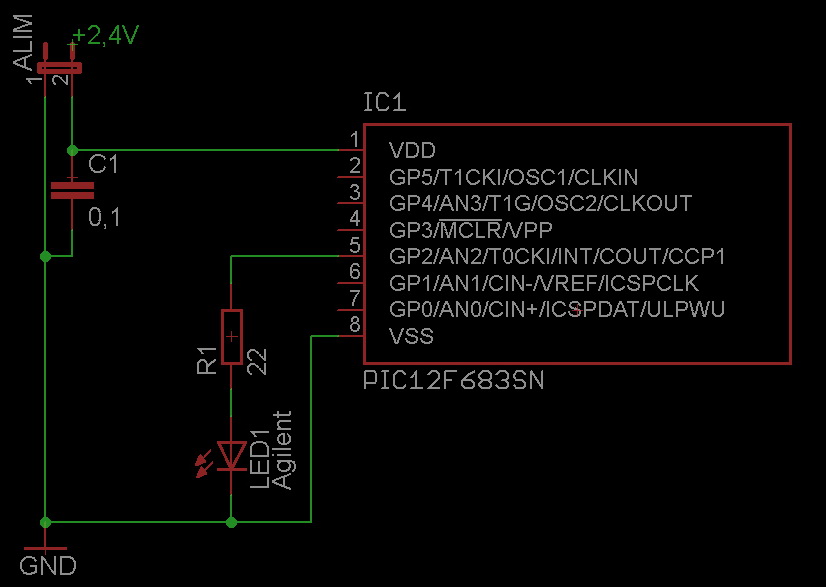

Electric diagram

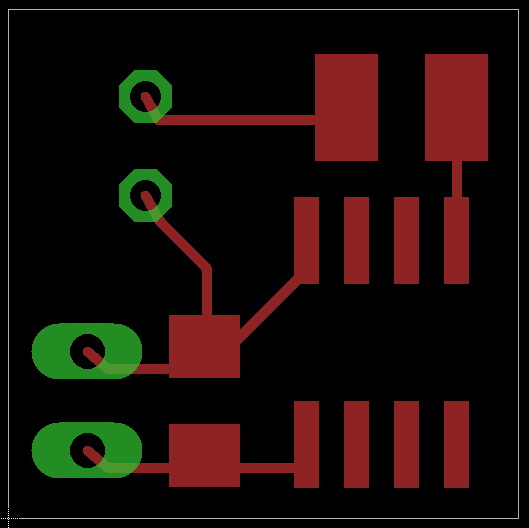

PCB 13x13mm

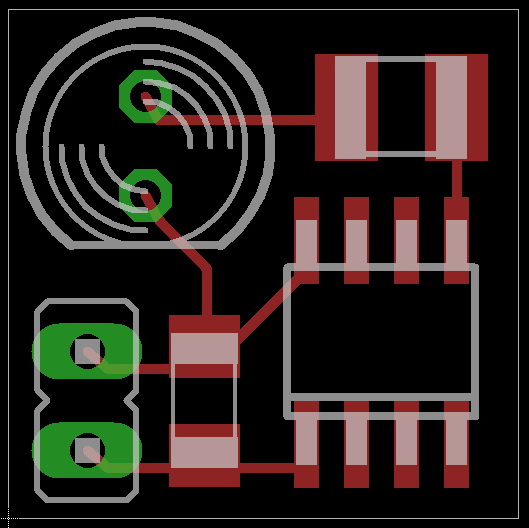

PCB 13x13mm

PCB 13x13mm











Data sheet LED Agilent HLMP-EL31-SV000 Agilent LED.pdf (361k)


Files Update. HEX 28/12/2010 ver 1.2


The file contains the CandelaA HEX for PIC12F683 in single or planning the first micro project with three micro ie the master. CandelaB and CandelaC NOT work in master mode but in slave mode. (See diagram project with three micro)


CandelaA v2.01.rar file contains the. HEX file to load into the micro CandelaA v2.01.rar (1k)

CandelaB v2.01.rar file contains the. HEX file to load into the micro CandelaB v2.01.rar (1k)

CandelaC v2.01.rar file contains the. HEX file to load into the microCandelaC v2.01.rar (1k)




The files. HEX and the content of these pages was released for teaching applications WITHOUT end of I make money from. For any other type of application it be able to contact me via email.
